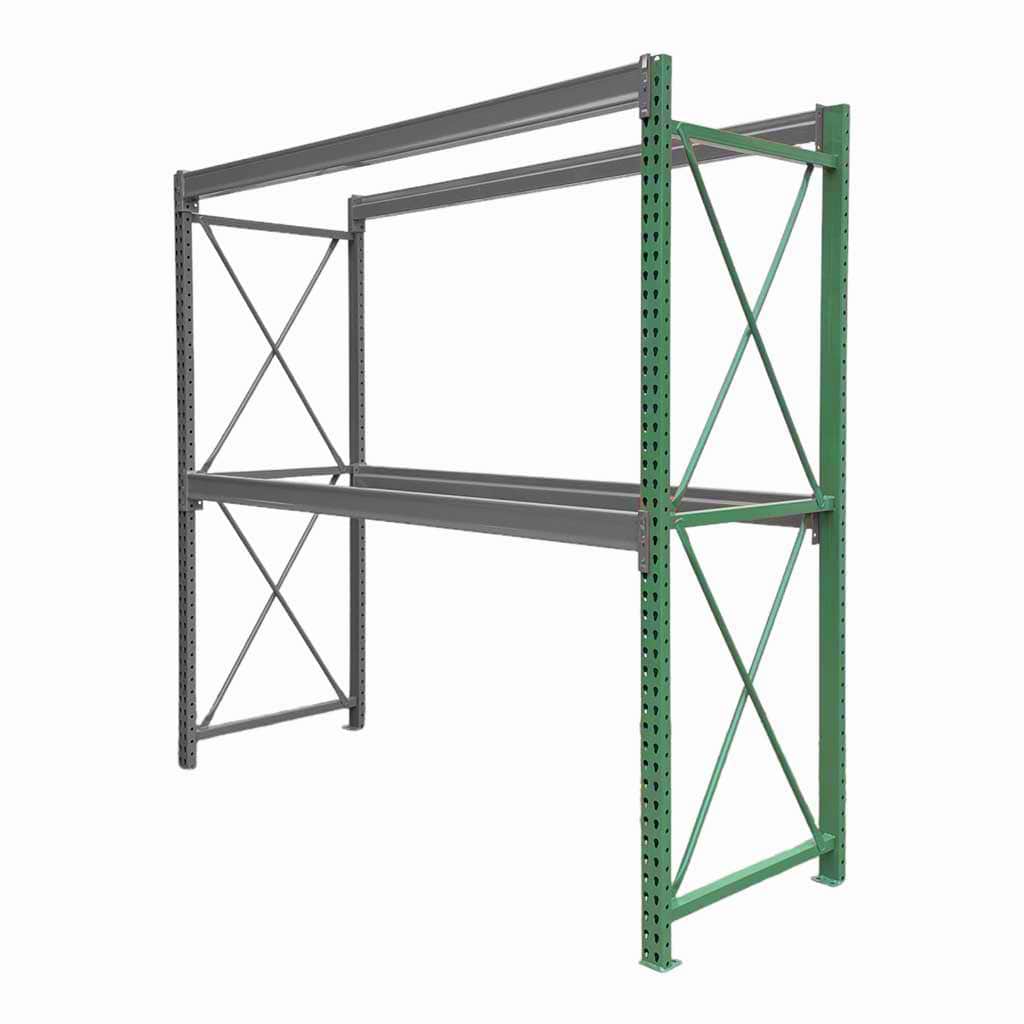

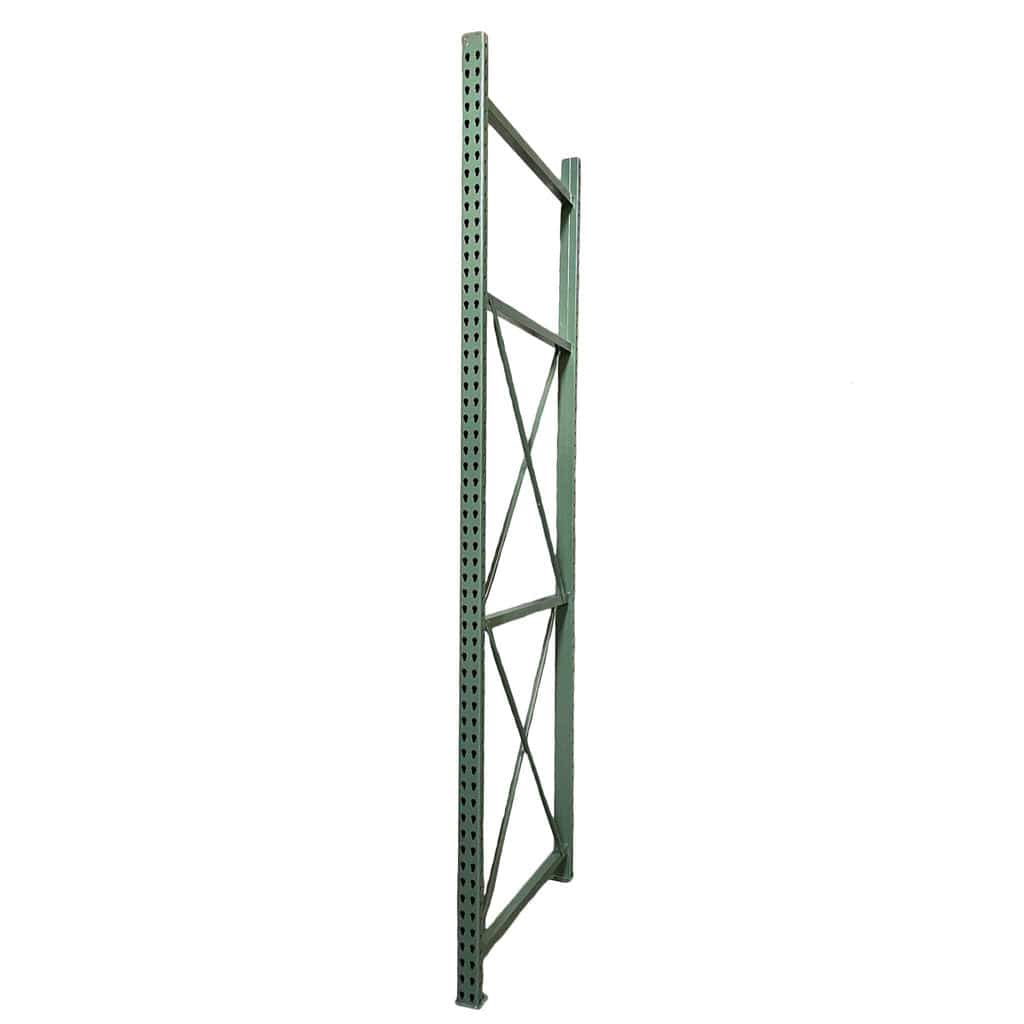

Pallet Rack Upright Frames

    1. Teardrop style pallet racking

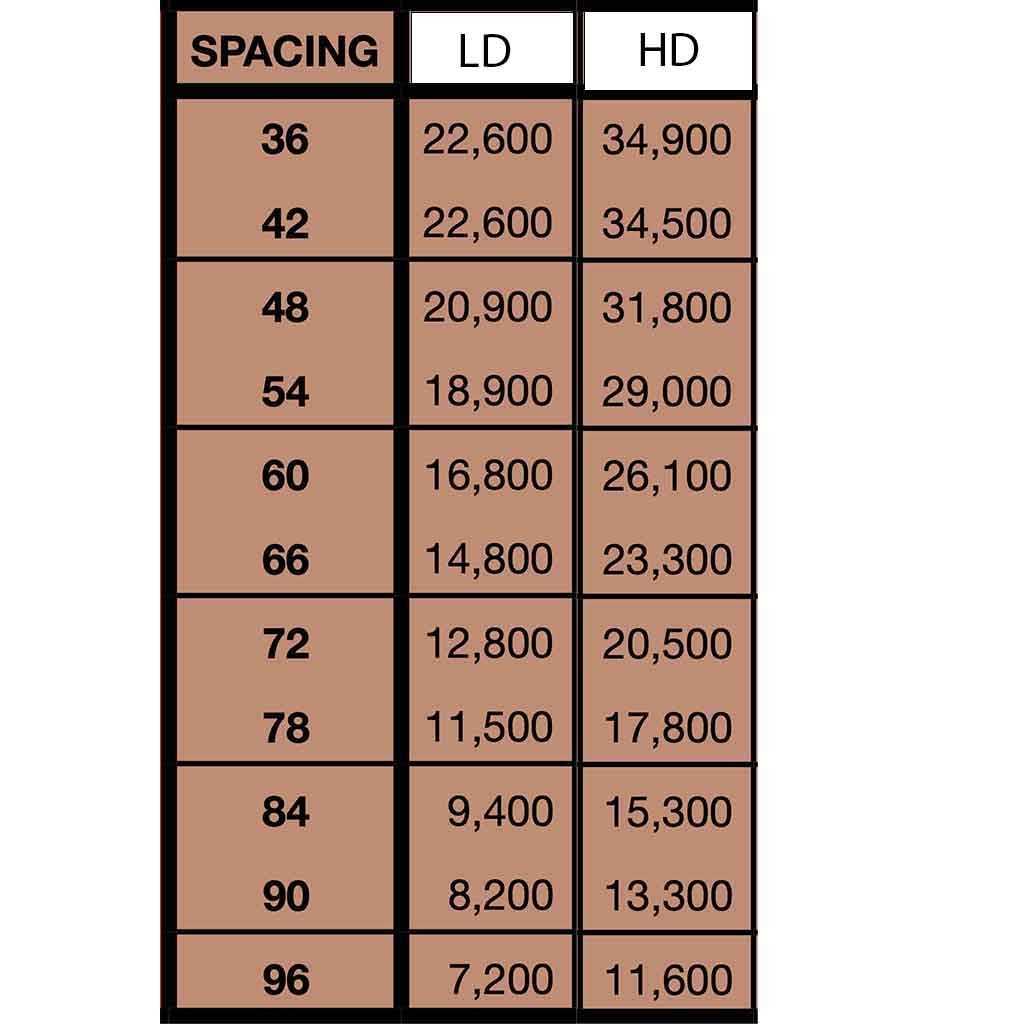

    2. Capacity based on 48" beam spacing

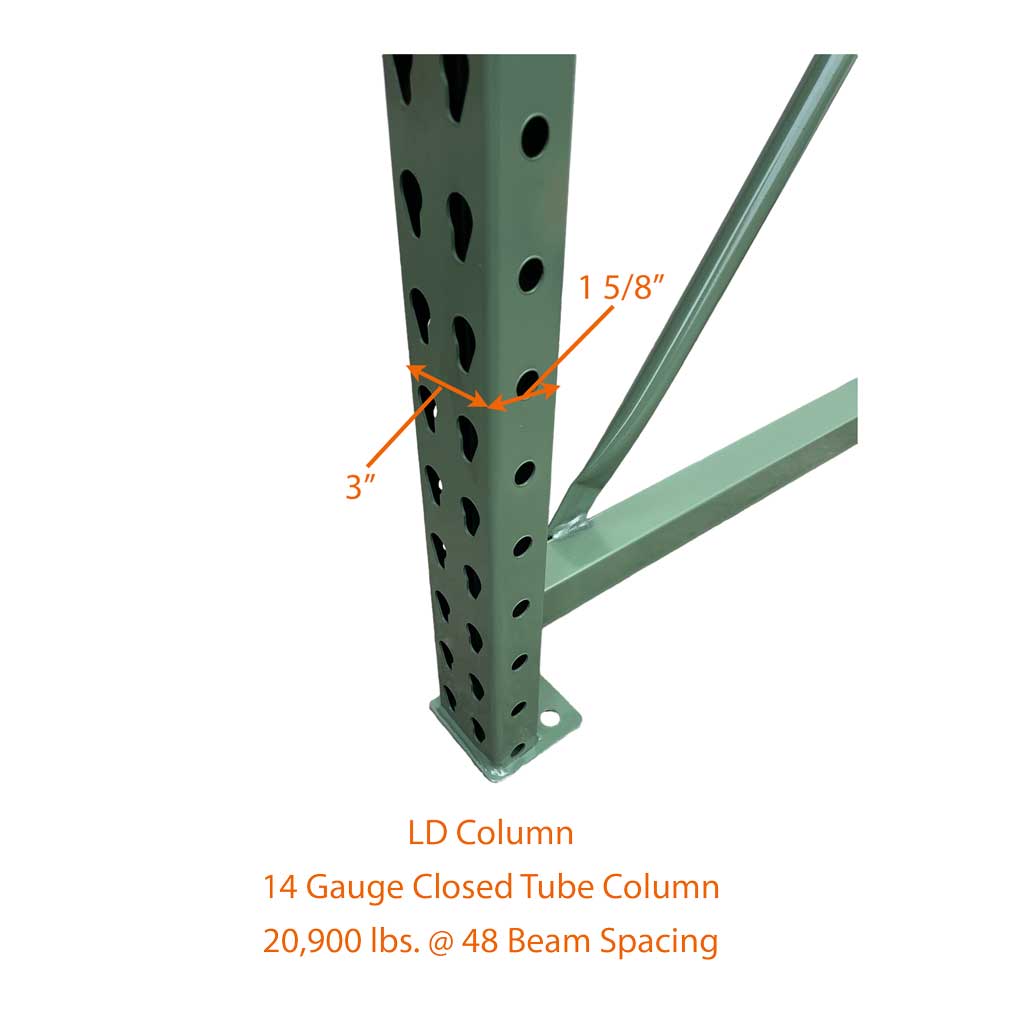

    3. LD Column: 20,900 lbs. capacity with 3" x 1 5/8" column

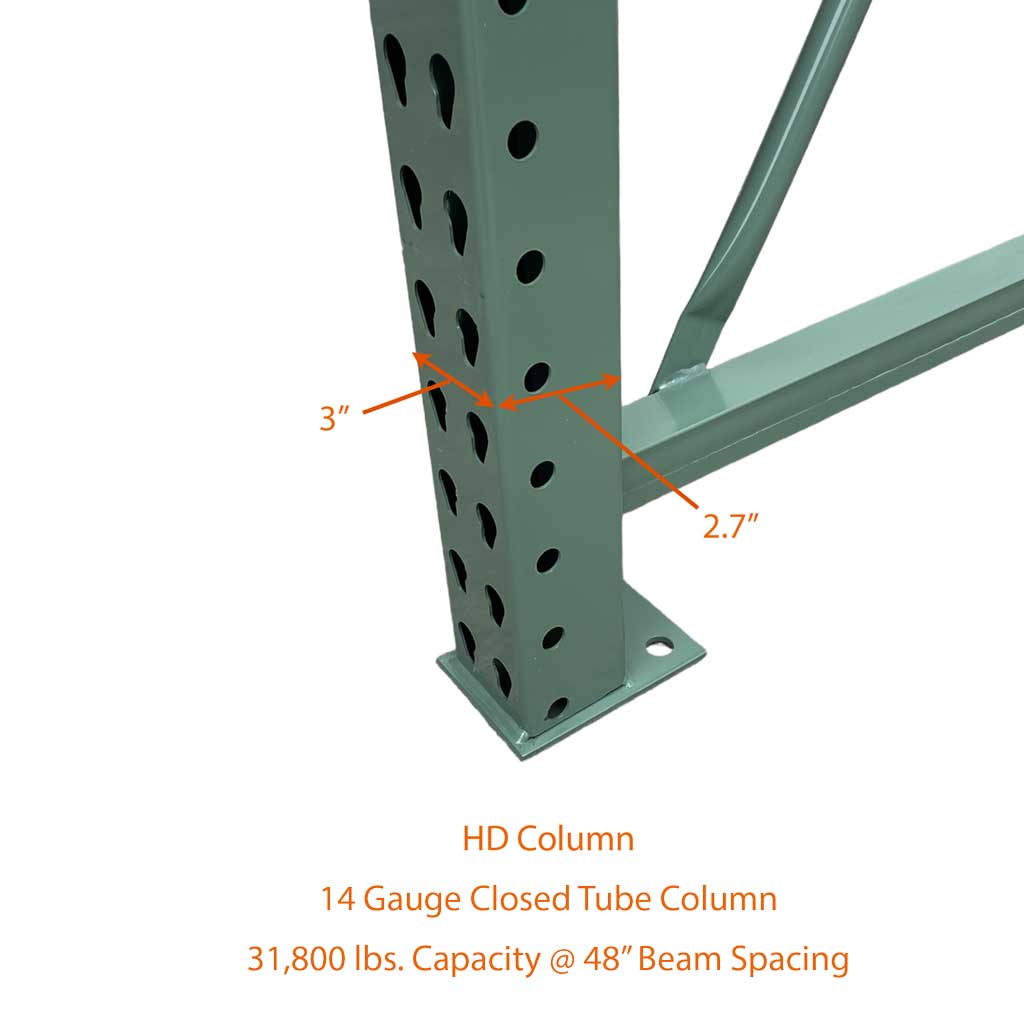

    4. HD Column: 31,800 lbs. capacity with 3" x 2.7" column

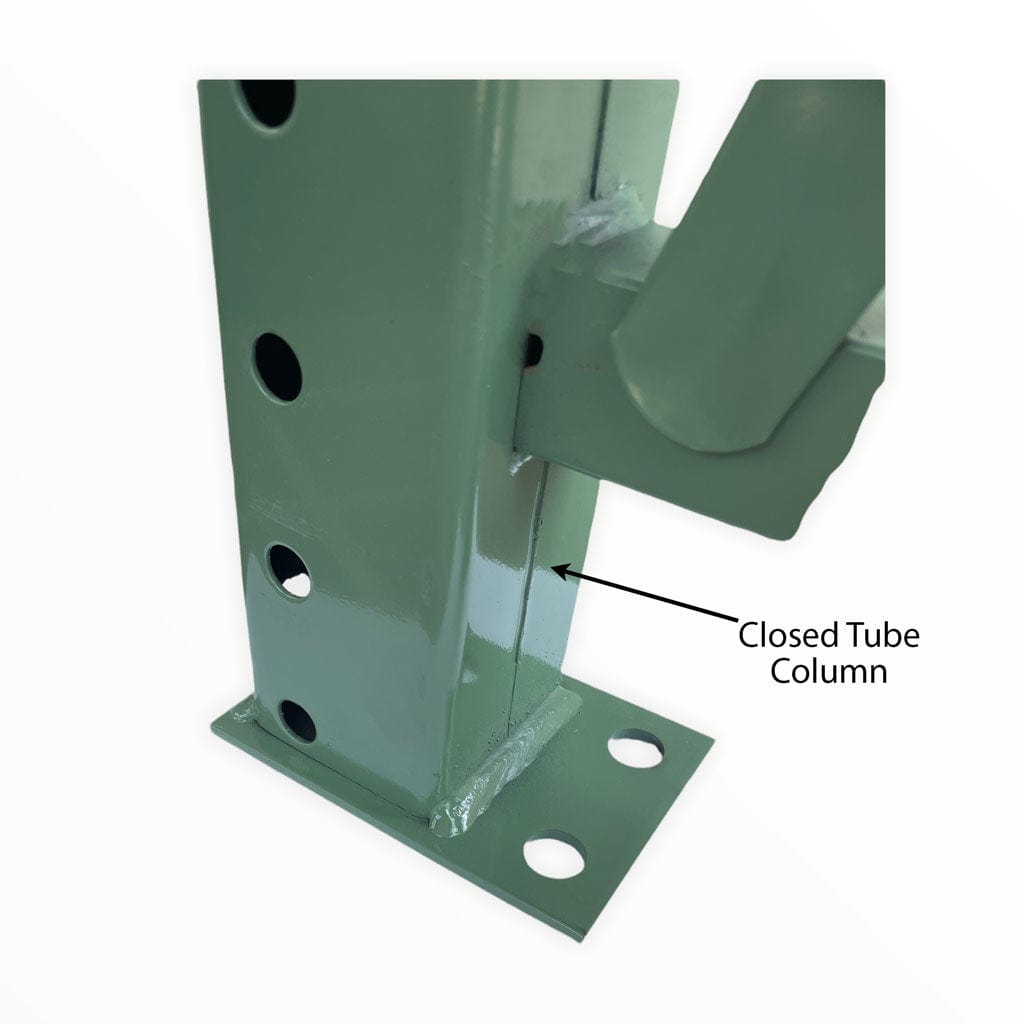

    5. 14 Gauge closed tube column for added damage resistance
    6. All welded construction
    7. Footplate 3.5" x 5" (2 anchor holes per footplate)
    8. Powder Coated Light Green
  • Speedrack Teardrop Pallet Rack Upright Frames are kept in stock in Birmingham, AL. We have uprights in heights from 8' tall to 20' tall. The sizes you see below are just the pallet rack that we keep in stock. If you do not see the size you need, let us know and we can get you a quote for your specific need.
  • This product ships from Birmingham, AL 35222 in 24-48 business hours from time of order placement. This material is kept in stock and is based on first come first serve.
